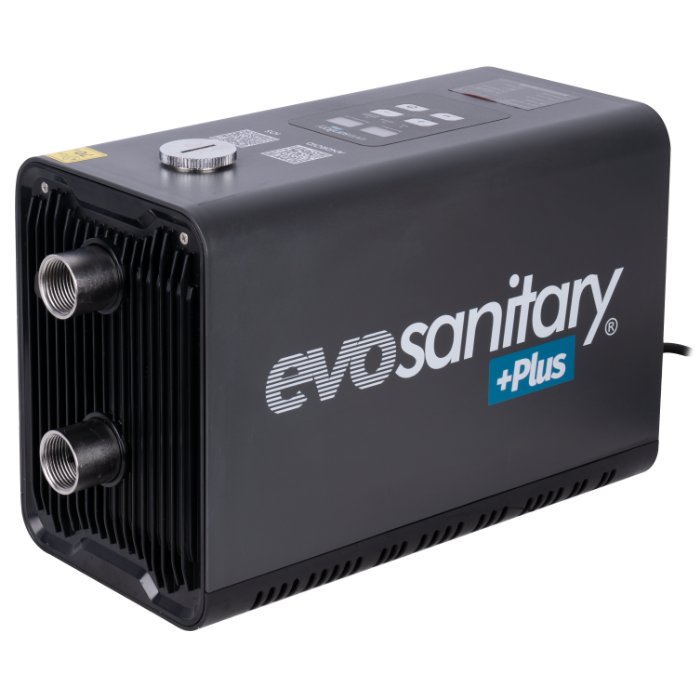

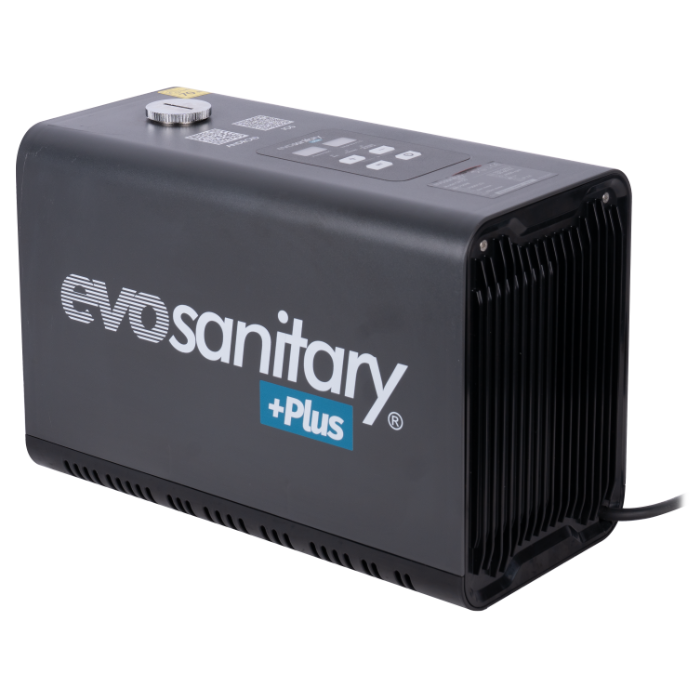

This domestic water pressure booster set is designed for the automatic water supply of homes, households or irrigation systems, using water from wells, boreholes or tanks. Thanks to the integrated self‑adapting pressure switch, the pump automatically sets its start and stop pressure according to the installation. If the automatically set start pressure does not meet the requirements of the installation, it can be adjusted manually. It is equipped with an opening for easy filling of the pump before operation.
With low energy consumption and a noise level of only 70 dB at maximum speed, the pump is perfect for use inside the home. Thanks to the possibility of Wi‑Fi connection, you can monitor and control the pump remotely using the "Intelligent Inverter Pump" app available on Android and iOS platforms, while also having access to operating parameters. In addition, the pump is protected against voltage fluctuations, frost, overheating of the water, lack of water and even possible faults caused by a broken pipe.
With a power of 750 W, the booster set allows water to be drawn from a depth of up to 6 m and pumped to a maximum head of 48 m, ensuring a maximum flow rate of 116 L/min. The stainless‑steel pump body eliminates the risk of rust and metal particles that could enter the system, and is much more reliable than pumps with a cast‑iron casing.

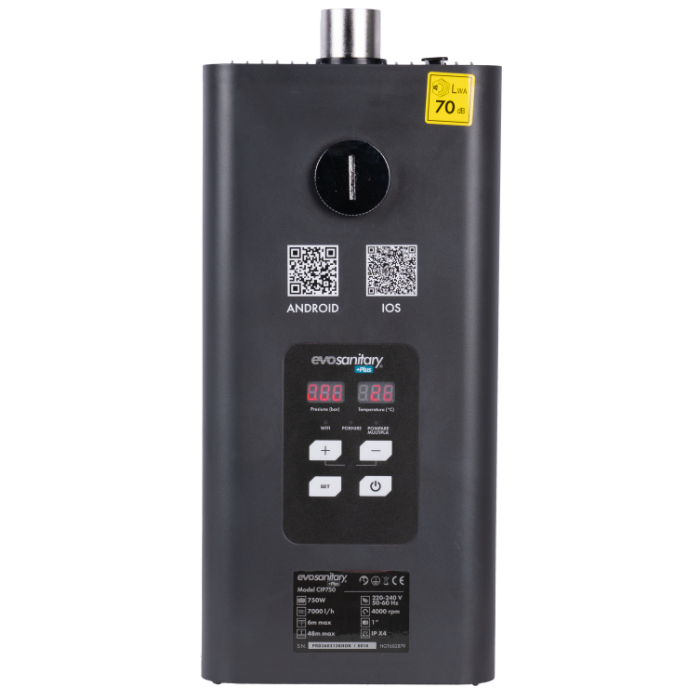

Another important advantage of the pump is the wide range of customizable settings, all available at the touch of a button, to meet your specific needs.
Technical data:
Rated power: 750 W
Maximum suction depth: 6 m
Maximum pumping head: 48 m
Maximum flow rate: 116 L/min
Maximum working pressure: 4.8 bar
Maximum temperature of pumped liquid: max 40°C
Filter: No
Protections: over/undervoltage, lack of water, thermal protection (with automatic reset)
Connection: 1”
Sensors: pressure calibration, temperature
Soft start‑stop: eliminates water hammer in combination with the 0.3L expansion vessel
Auto‑reset
Anti‑freeze function below 3°C (the pump starts at a reduced speed until it reaches 16°C and returns to the initial operating mode; however, if it is demanded during this time, it operates within parameters)
Frequency converter (adjusts the operating speed so as to maintain constant pressure in the system, regardless of the consumers)
Non‑return valve
Degree of protection: IPX4
Noise level: 70 dB(A)
Net weight: ~ 8.5 kg
Do not use the product for extracting hydrocarbons (fuels, oils, solvents, etc.) or other liquids.
