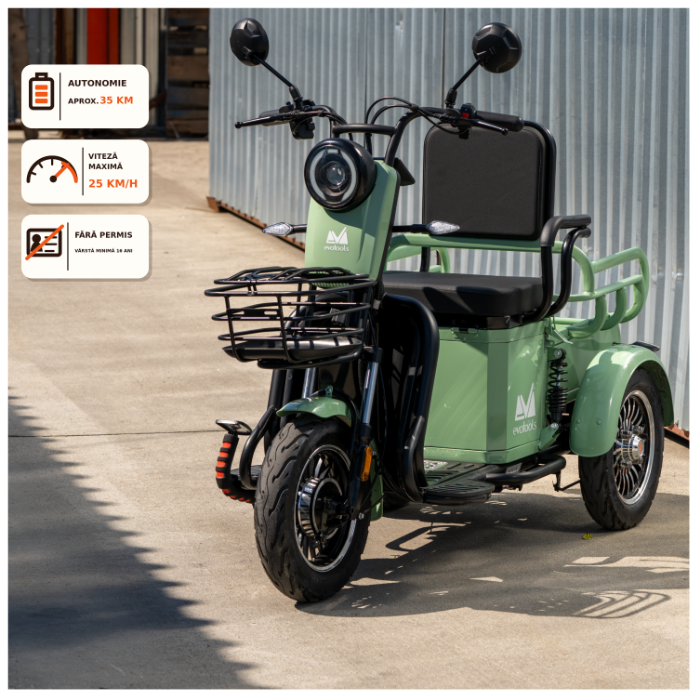

The TRP500 EvoTools® electric tricycle for personal transport is suitable for all age categories, both for rides in the busy city, where its compact dimensions are a real advantage, and for trips to the market or garden in rural areas, having a small cargo bed at the rear, essential for carrying shopping or tools.
The tricycle is driven by a brushless motor with a rated power of 500 W and can reach a maximum speed of 25km/h.
It is equipped with 48V/20Ah batteries (4 batteries x12V) with a charging time of 6-8 hours and offering a range of approximately 35 km (under optimum conditions).

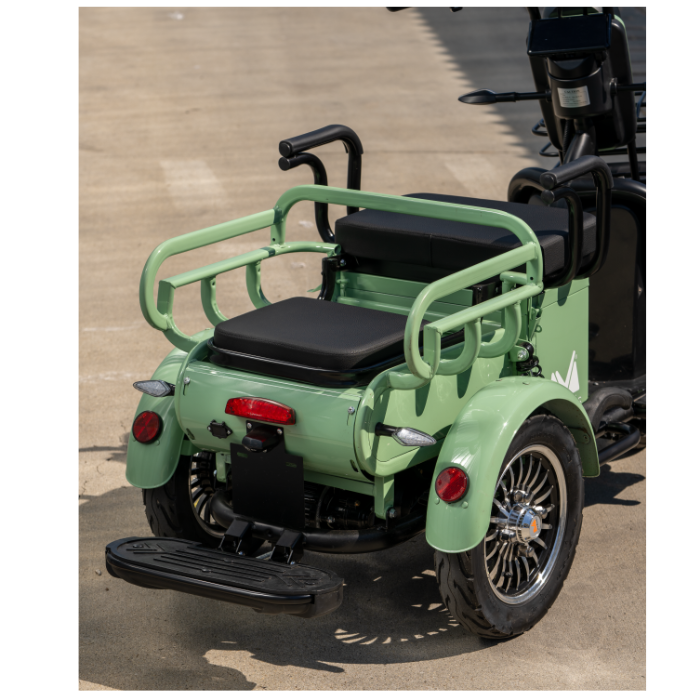

LED lighting makes it perfect throughout the day, and the backrest that turns into a passenger seat above the cargo bed is a reliable aid for trips to the farm or garden.
No driving licence is required (minimum age 16 years).
It is type-approved, with HGT® providing all the documents needed for its registration.
Technical specifications:
Rated power: 500 W
Maximum power: 700 W
Motor type: brushless
Maximum speed: 25 km/h
Battery: lead-acid, 48V/20Ah (4 batteries x12V)
Range: ~35 km (under optimum conditions)
Charging time: 6-8 h
Charger: 230 V/50 Hz included
Display: tablet-type digital (km/h, distance travelled in km, battery charge level, speed gear)
Lighting: LED - low beam, high beam
Wheelbase: 1050 mm
Dimensions (LxWxH): 1770x710x1045 mm
Number of gears: 3 forward, 1 reverse
Brake type: drum

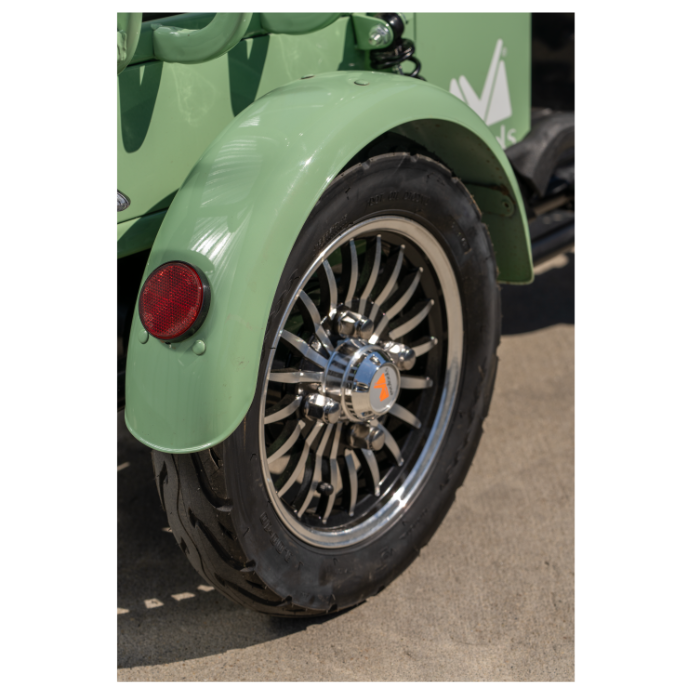

Tyre size: 3.00-10
Rim material: alloy
Net weight: 102.8 kg (tricycle+battery) (78+24.8)
Maximum permissible weight: 203 kg (net weight+user+load)
Warranty: 24 months (individual customer)
Warranty: 12 months (legal entity)
Recommendations for battery use and maintenance:
Charge the batteries when the battery level reaches approx. 15% or when the last bar appears on the display.
Do not let the battery discharge completely! Total discharge may cause irreversible damage.
Always charge the battery before the indicator shows a critical level.
Over-discharge can lead to overheating of the battery or charger and may increase the risk of fire.
If you do not use the vehicle for a longer period, disconnect the electrical circuit from the main fuse.
After each use, remove the key from the ignition.
Avoid using the vehicle with a very low battery.
Charge the battery after each use to extend its service life.
Battery conditioning (new vehicle):
Use the vehicle until almost completely discharged.
Fully charge the battery.
Repeat the cycle 3 times: almost complete discharge → full charge.
Afterwards, continue with normal usage and charging cycles.
*Range is approximate and may vary depending on:
Travel speed
Weight of passengers and load
Road gradient
Ambient temperature
